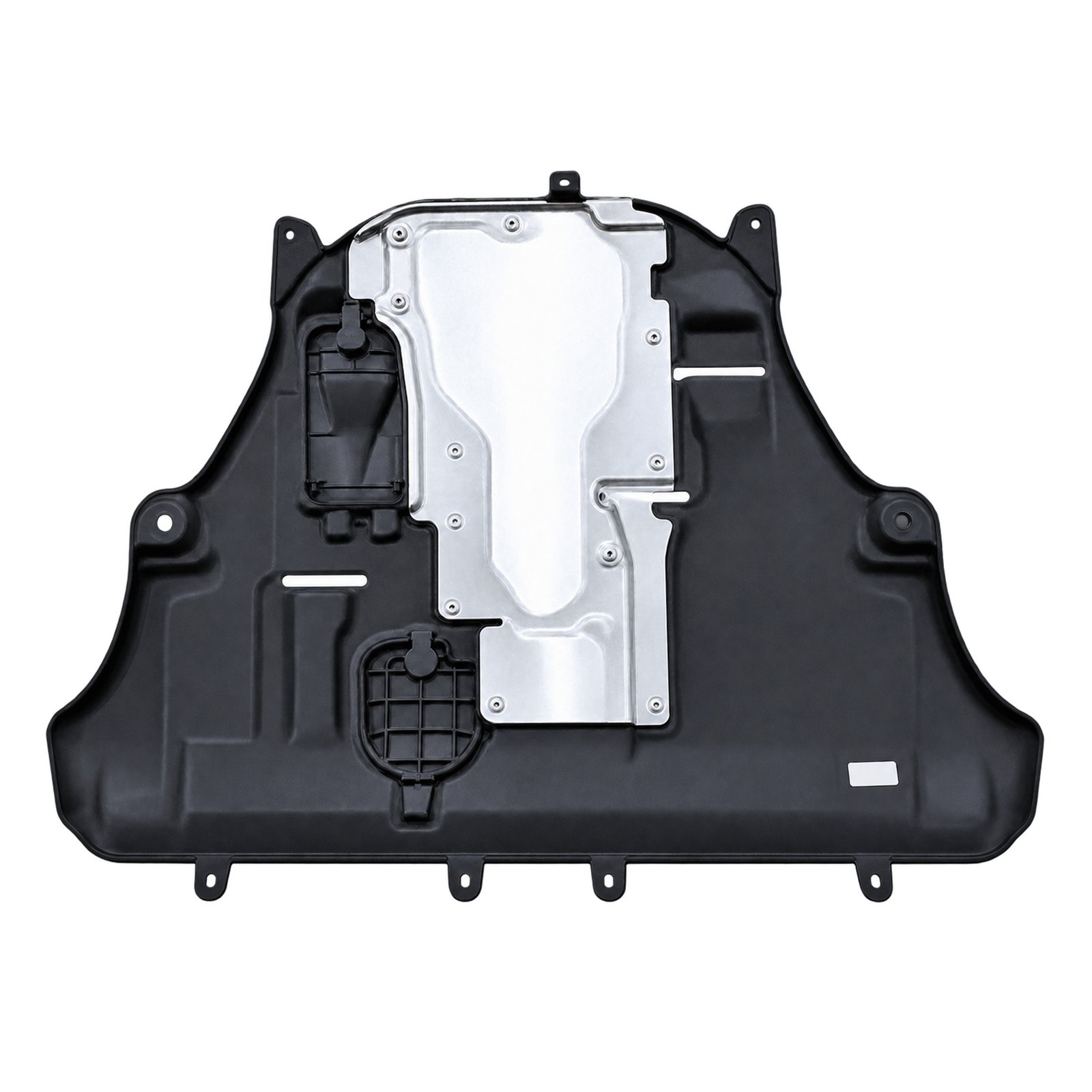

Engine Underbody Shield for Jeep Cherokee 2016 (US Specification)
- The shield widens toward its lower edge around a large bright centre section.
- Two darker inset areas sit to one side of the central field.
- This is the US-specification reference; drivetrain fitment is not inferred from its shape.
Broad Lower Edge and Large Centre Section
The shield has a broad lower portion and a narrower upper outline. A large contrasting centre section dominates the face, with darker inset shapes on one side and attachment features around the perimeter. These visible boundaries help compare the panel arrangement without identifying its material.
Match the complete perimeter and fixing locations to the original US-specification shield. Do not substitute another underbody panel simply because its centre section looks similar. The photograph alone does not establish drivetrain coverage, heat performance or the function of each inset.
Application and Reference
Application: Jeep Cherokee 2016. OE reference: 68156503AG.
Can the contrasting centre material be identified from the photo?
No material specification is confirmed. Use the image to compare shape and arrangement, and request any required material details separately.
