Engine Underbody Shield 53485126 for Jeep Grand Commander K8 2018-2021
- A broad upper edge narrows into an uneven lower extension containing a long opening and a smaller rounded rectangular opening.
- Raised ribs, recessed fixing wells and an elongated outlined cover section are visible across the face.
- Compare the full perimeter and lower cut-outs with the existing engine shield; similar width does not establish a match.

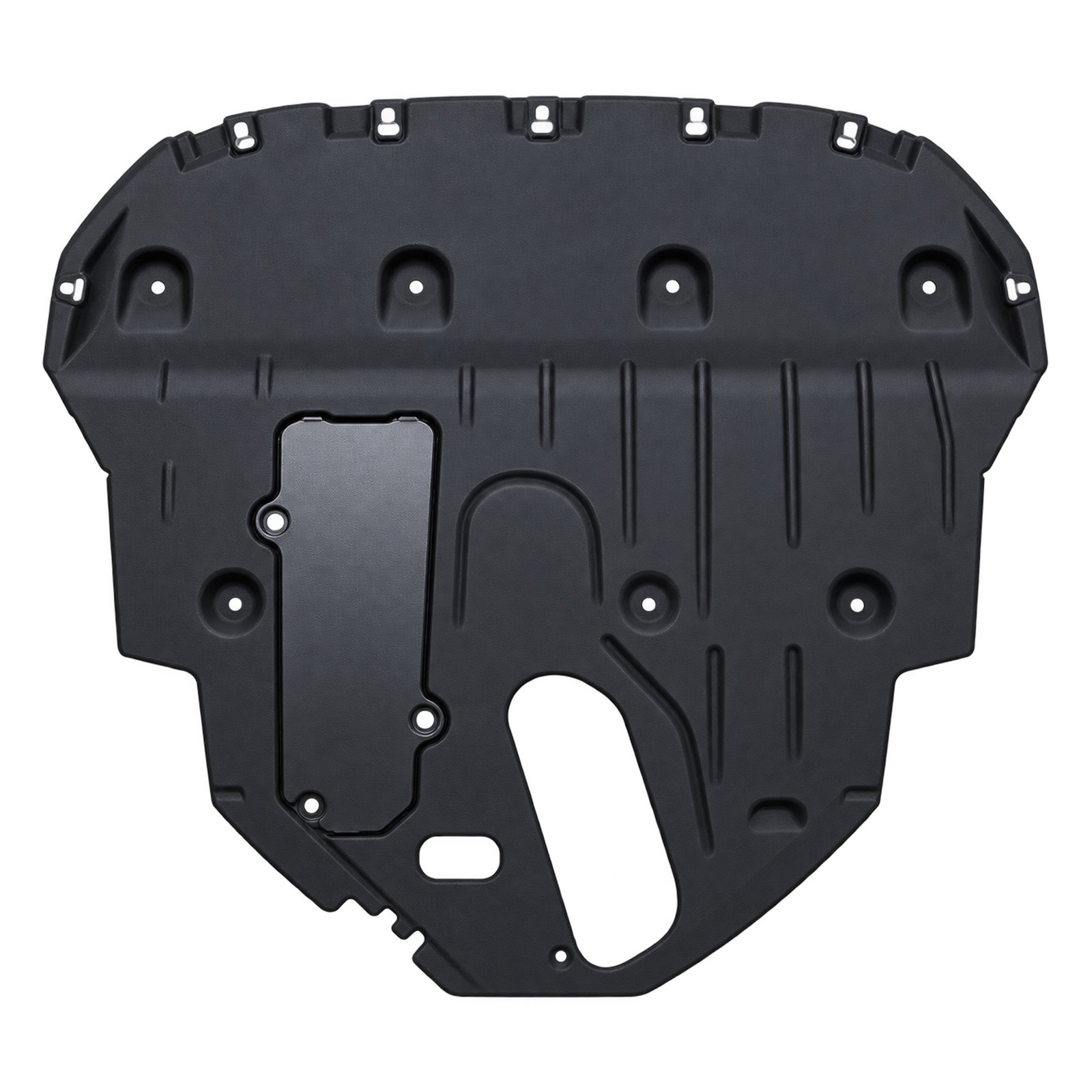

Shaped Shield with Distinct Lower Cut-outs
The pictured engine underbody shield has a wide curved upper edge and a narrower lower extension. Recessed fixing wells are distributed across the face, with slots along the upper perimeter. Long ribs run down one side, while an elongated cover-shaped section occupies the other.
A large narrow opening and a smaller rounded rectangular opening sit near the bottom. Their positions, together with the uneven outline, are useful checks when comparing the panel removed from the vehicle.
Checking the Complete Shield Outline
For Jeep Grand Commander K8 2018-2021, the reference is 53485126. Confirm the original shield shape and mounting positions before ordering. The outlined section visible in the photograph does not establish which separate covers or fasteners are included in supply.
Is this the same as a side underbody panel?
It is identified as the engine underbody shield. Side panels should be checked separately rather than selected by similar surface ribs.
Can the small outlined cover be ordered separately?
Separate availability is not confirmed. Identify the required piece in a photograph and request confirmation of the supplied contents.
