1083501-00-B Radiator Support Frame – Model 3 ’19
- Match this radiator support frame to the exact Model 3 ’19 vehicle and installation position
- The support frame has a straight upper crosspiece and two ribbed arms that spread downwards
- Match the distance between the lower feet and the mounting holes along the top rail to the original frame
- OE reference: 1083501-00-B
Description
Visible Features

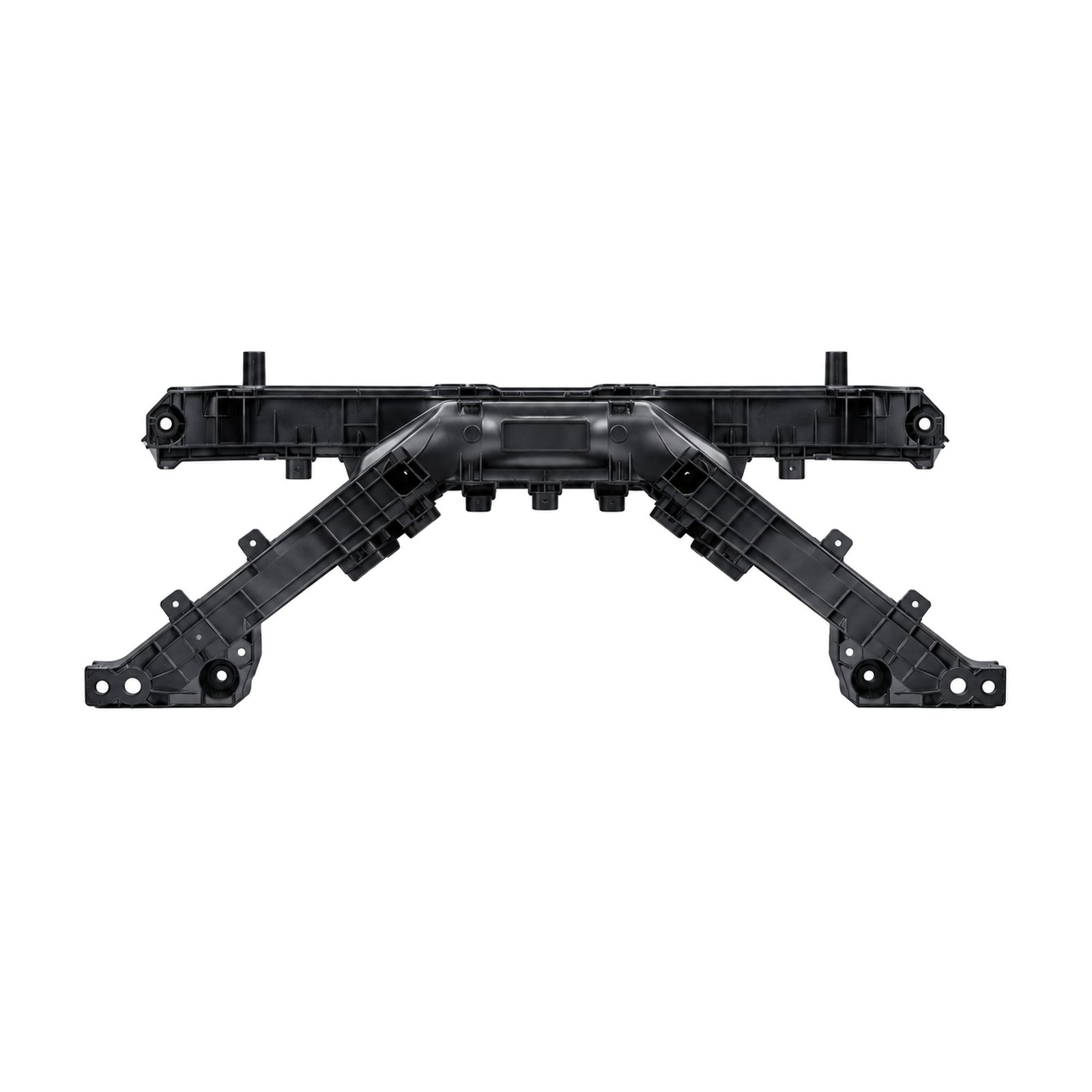

Radiator Support Frame. The support frame has a straight upper crosspiece and two ribbed arms that spread downwards.
Part Matching
Match the distance between the lower feet and the mounting holes along the top rail to the original frame. Use the exact Model 3 ’19 vehicle details to confirm the required radiator support frame. OE reference: 1083501-00-B.
Questions Before Ordering
Can the support be chosen by its visible outline?
Check the back and mating edges too. Similar outlines can conceal different fixings, so keep the old support available until the replacement is confirmed.
What information is needed for a quotation?
State the selected radiator support frame, quantity and delivery destination. Confirm availability and included fittings before placing the order.
