PACKAGING & DELIVERY • 7 MIN READ
Automotive parts export packaging must protect fragile lenses, visible finishes, mounting tabs and long profiles through handling, stacking, vibration and changes in temperature or humidity. The right solution combines part-level cushioning, a strong outer carton and stable pallet or container loading.
Automotive parts export packaging for the real shipping journey
International shipments pass through factories, warehouses, trucks, ports and destination handling. A carton can be lifted many times and may experience vibration, drops, compression and humidity. Packaging that looks neat at dispatch may still fail if the part can move, if pressure reaches a lens, or if the carton loses strength.
| Risk | Parts most affected | Protective response |
|---|---|---|
| Impact and drops | Headlamp lenses, corners, tabs | Energy-absorbing foam and corner clearance |
| Compression | Grilles, hollow mouldings, cartons at pallet base | Reinforced cartons and load limits |
| Abrasion | Chrome, piano black and painted surfaces | Soft non-woven bags and separation layers |
| Bending | Long trim, mouldings and narrow grille bars | Rigid backing and full-length support |
| Moisture | Metal brackets, electronics and cartons | Dry materials, sealed inner bag and desiccant when needed |
How to protect headlamps
Headlamps combine a large clear lens with protruding mounting tabs, rear covers, connectors and adjustment mechanisms. The lens must not touch the outer carton or another part. Support should contact strong housing areas and leave clearance around brackets.
- Cover the lens: use a clean non-abrasive bag or film that will not mark the coating.
- Protect protrusions: add shaped foam or individual guards around vulnerable tabs and corners.
- Immobilise the assembly: use upper and lower inserts so it cannot slide or rotate.
- Maintain clearance: keep the lens and connectors away from carton walls.
- Test the closed pack: gently move the carton; the product should not shift or rattle.
How to pack grilles and long trim
Grilles may be lightweight but have large surface areas, thin decorative bars and multiple clips. Use a soft protective bag first, then support the outer frame at several strong points. Avoid straps or foam blocks pressing directly on narrow bars, chrome edges or sensor openings.
Long trim pieces need continuous support because bending can create permanent deformation or coating cracks. A rigid backing board, channel or formed insert should follow most of the part’s length. Separate each piece so metal clips cannot scratch the adjacent finish.
- Cover visible surfaces with clean, non-abrasive material.
- Use dividers so parts cannot rub together.
- Protect corners and all projecting clips.
- Keep tape and adhesive away from painted or chrome faces.
- Mark orientation where storing the carton flat is important.
Choose the right outer carton and pallet pattern
The outer carton must suit the packed weight, stacking height and route. A carton that is much larger than the product encourages movement and wastes container space; one that is too tight transfers impact directly to the part. Use double-wall or reinforced corrugated board where weight, humidity or stacking pressure demands it.
Close cartons securely and print or label the part number, quantity, side and carton number. Handling marks such as fragile, keep dry and this way up are useful, but they do not replace structural protection.
Palletising principles
Use a sound pallet with no protruding nails or damaged boards. Keep cartons within the pallet footprint and place stronger cartons at the bottom. Add edge boards, top protection and stretch wrap, but do not over-tighten the film until cartons deform. Straps should pass over protectors so they do not cut into the load.
Carton edges outside the pallet are vulnerable to impact and compression.
Use an aligned or planned interlock pattern without crushing weaker cartons.
A top board reduces strap pressure and protects against incidental contact.
Show purchase order, part number, quantity, destination and carton count.
Check container loading and incoming condition
Before loading, inspect the container or truck for holes, water, strong odours and damaged flooring. Distribute weight evenly, keep fragile cartons away from heavy items and fill unsafe voids so pallets cannot shift. Photograph the empty container, loading stages, final bracing and closed doors.

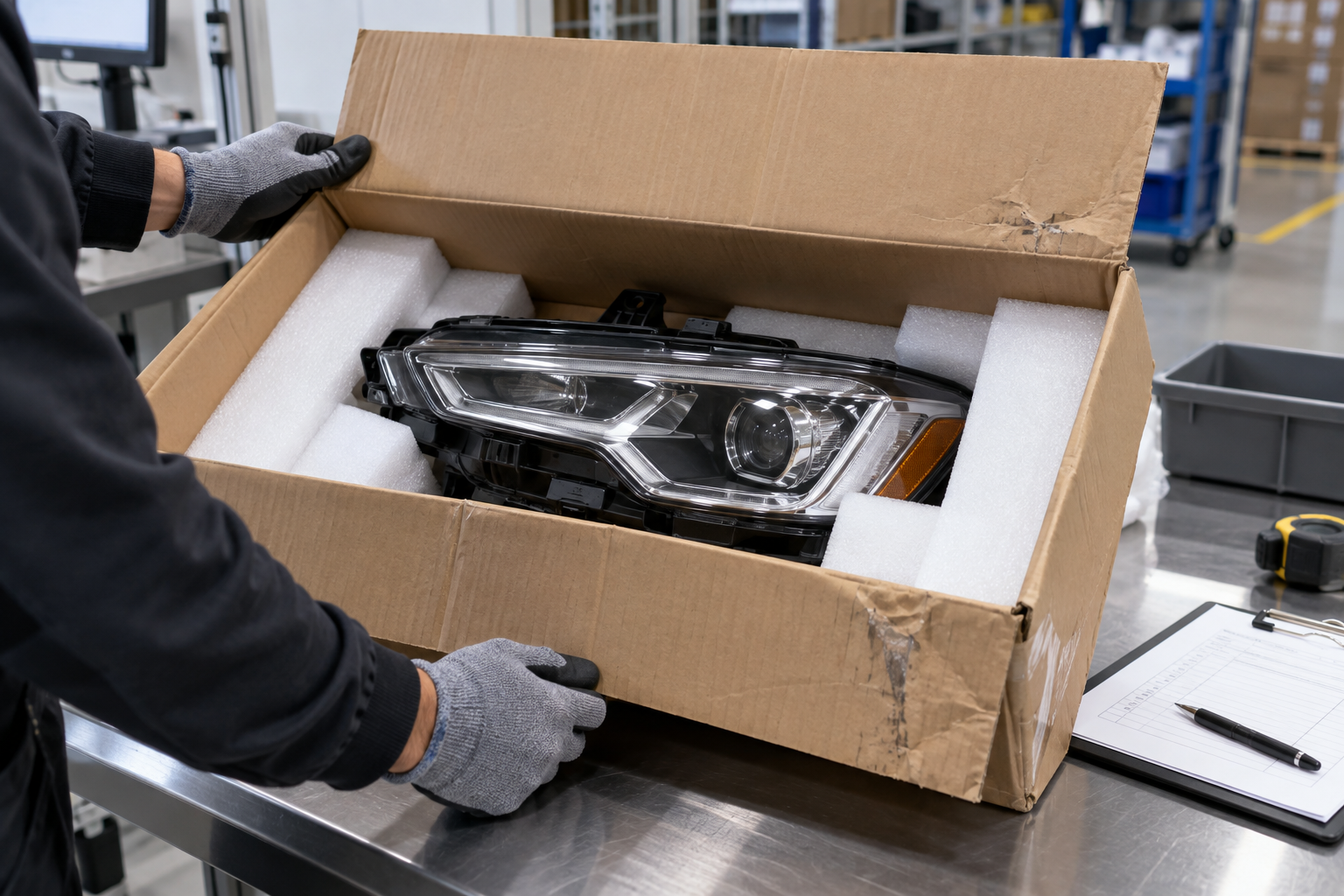

At destination, inspect before unpacking. Record crushed corners, punctures, moisture, broken straps or shifted pallets. Open suspect cartons carefully and keep the packaging until the condition of the part is confirmed.
A practical pre-shipment packaging checklist
- The correct part, side and quantity are packed.
- Visible surfaces are clean and isolated from abrasive contact.
- Lenses, tabs, clips, connectors and long edges have targeted protection.
- The product cannot move when the carton is handled.
- Outer carton strength matches weight and stacking conditions.
- Labels match the packing list and are easy to scan.
- Pallets have no overhang and are wrapped without carton deformation.
- Loading and sealing photos are included in the shipment record.
Frequently asked questions
Is bubble wrap enough for a headlamp?
Usually not by itself. Bubble wrap protects surfaces but may not stop the assembly moving or protect protruding tabs. Shaped support and clearance inside a strong carton are more important.
Should automotive parts be packed individually?
Fragile, high-finish or irregular parts are normally safest in individual packs. Multi-piece packs can work when each item is separated and the load is engineered to prevent contact and compression.
When is a wooden case needed?
Consider a case for very fragile, high-value, unusually large or heavy parts, and for routes with severe handling risk. The design must still immobilise the item inside and comply with applicable wood-packaging rules.
How can buyers verify packaging before shipment?
Approve a packaging sample, request photos or video of the packed item and pallet, review carton specifications, and include packaging checks in the pre-shipment inspection report.
