Rear Door Moulding for Jeep Compass 2017-2019
- A long lower section turns sharply upward at one end.
- The raised end finishes in a short curved tip.
- The front and rear door mouldings have different visible outlines.
Description

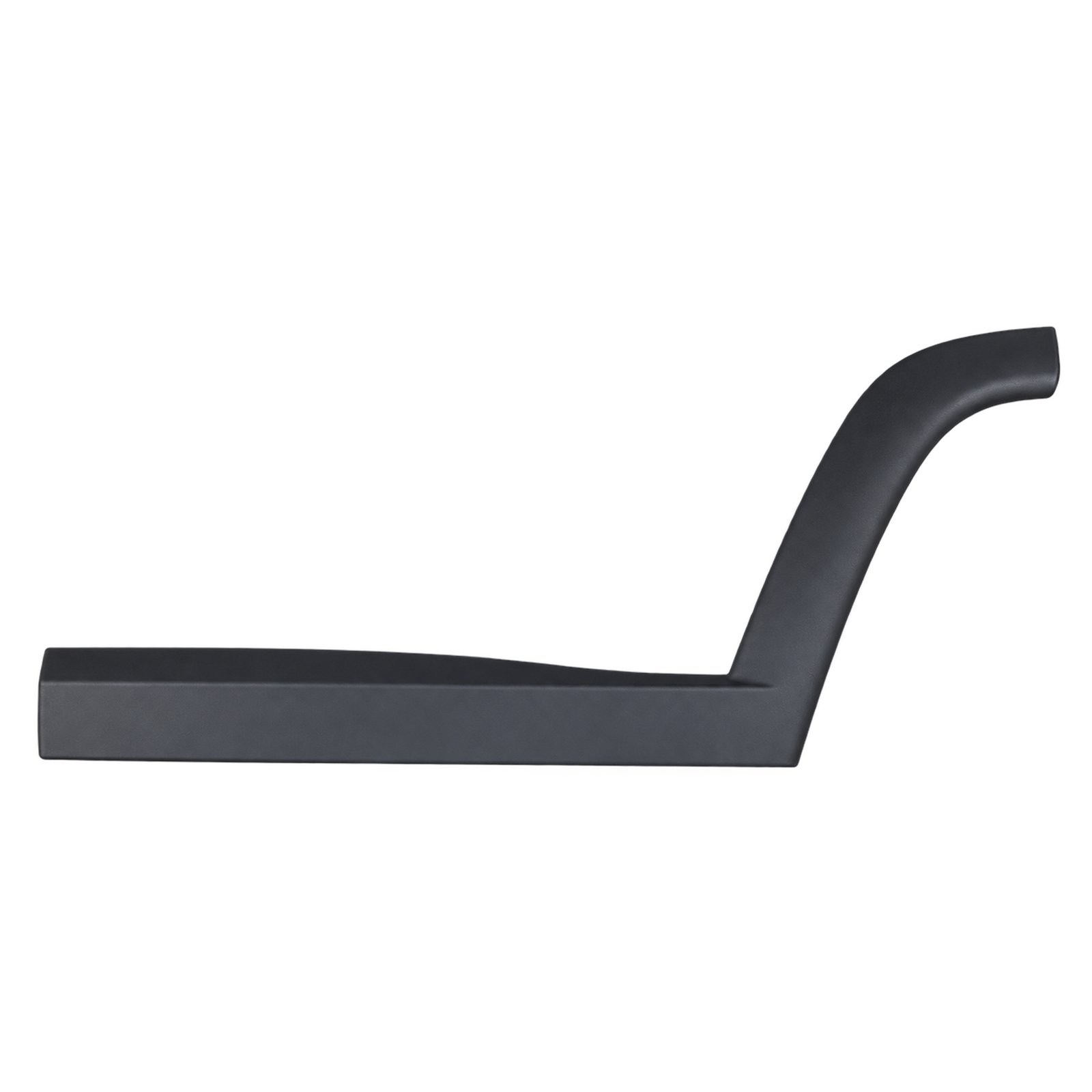

Horizontal Lower Section and Raised Curved End
The rear-door moulding has a long horizontal portion that turns upward into an angled section. A short curved tip finishes the raised end. This change in direction is a key feature when checking the joint near the wheel-arch area.
Compare the turn and curved tip on the original rear door, using the correct left or right reference. Use the complete number for the required side when checking the replacement. The photographed outline does not establish that clips or other adjoining trim are supplied.
Application and Reference
Application: Jeep Compass 2017-2019. OE reference: 5UP27RXFAB LH / 5UP26RXFAA RH.
Which detail is most important when comparing the two door positions?
Check the raised end and its junction with the nearby arch trim. The straight front-door strip is not identified as a substitute.
