Small Rear Bumper Bracket for Jeep Grand Commander K8 2018-2021

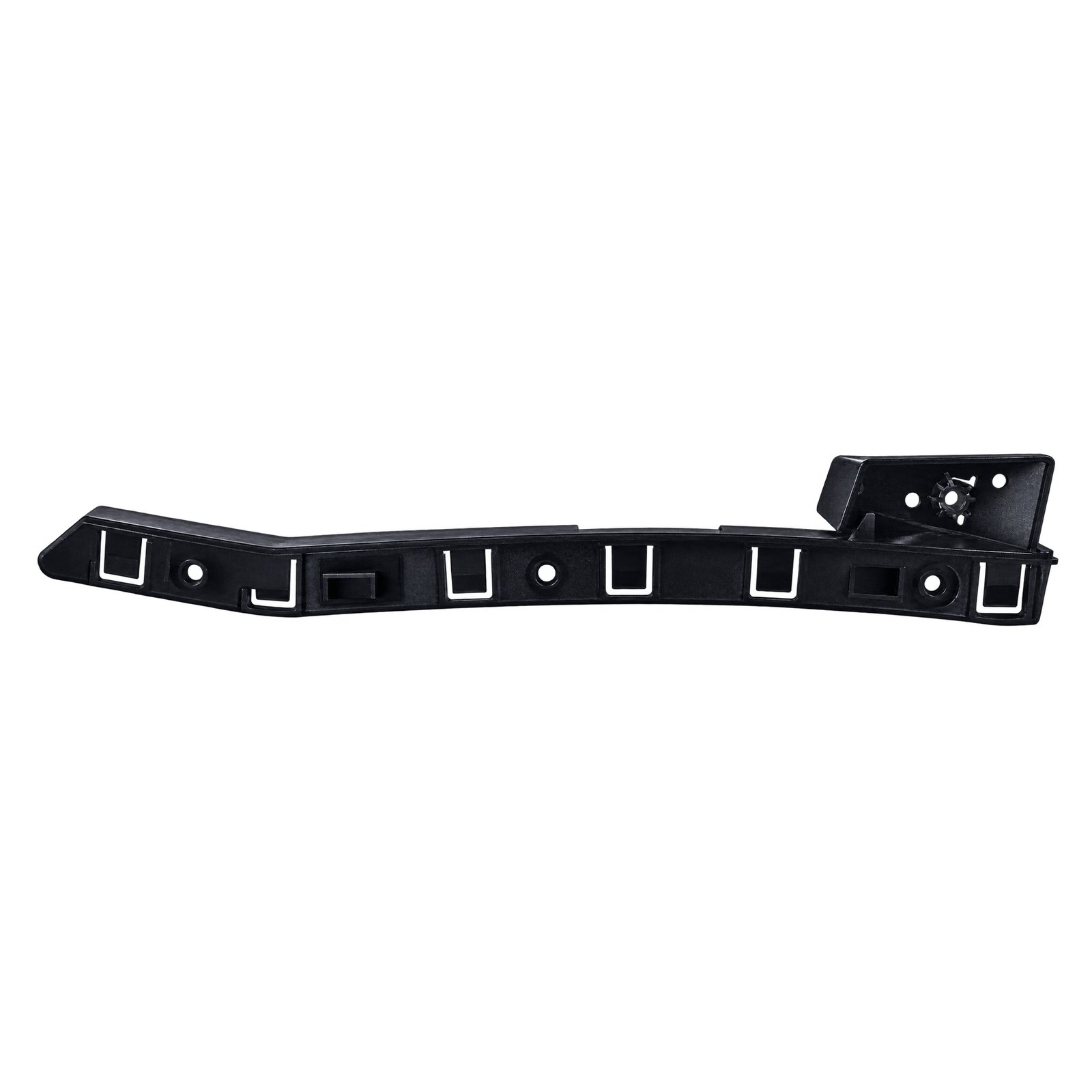

- A narrow strip carries a row of rectangular openings interrupted by round fixing points.
- One end steps upward into a raised flange with its own hole pattern.
- Small rear-bracket version; match the stepped end and the left or right reference to the original component.
Narrow Rear Strip with a Raised End Flange
The small rear bumper bracket has a gently bent length with repeated rectangular retaining openings. Round fixing points sit between them. At one end, an upright flange rises above the strip and contains a separate cluster of holes.
That raised end is useful for checking orientation. Compare where it sits relative to the bumper edge and inspect both faces of the removed bracket before choosing a replacement.
Small-Bracket Side Identification
The references for Jeep Grand Commander K8 2018-2021 are 53388809 LH / 53388810 RH. Select the required side rather than treating the two numbers as a paired supply quantity.
Can the large rear bracket be used instead?
No substitution is established. This narrow retaining strip has a different profile from the broad-bodied large bracket.
Which details matter if only part of the old bracket remains?
Photograph the surviving raised flange and adjacent fixing points. Include the bumper edge so the position of the broken section can be identified.
