Radiator Shutter Assembly for Jeep Grand Commander K8 2018-2021

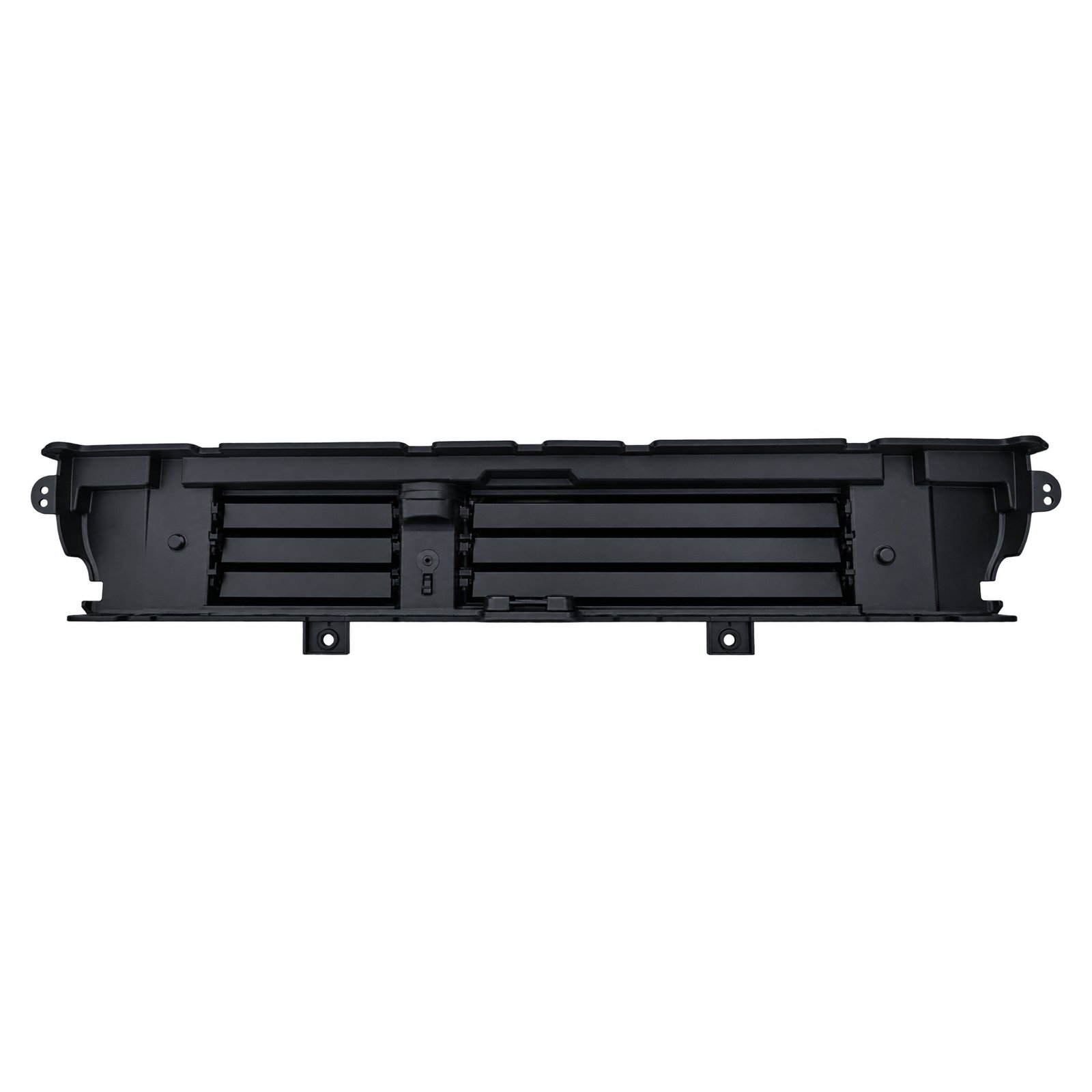

- Two unequal-width banks of horizontal louvres sit inside a long rectangular frame.
- An offset upright divides the louvres, with fixing ears at the outer ends and along the bottom.
- Confirm the original reference and complete required configuration; visible louvres do not establish the supplied control components.
Louvred Frame with an Offset Divider
The radiator shutter has a shorter bank of horizontal louvres beside a wider bank. A vertical section divides them off-centre, and the surrounding rectangular frame extends to mounting ears at both ends. Two further fixing tabs project below the lower rail.
When comparing an original assembly, include the full frame rather than only the louvres. The divider position, side ears and lower mounting points are useful visual checks.
Assembly Reference and Supply Scope
The Radiator Shutter Assembly for Jeep Grand Commander K8 2018-2021 carries references 53374006/53482750. Confirm the number on the original component. The presence of two references does not establish that every configuration can be interchanged.
Are an actuator or control components included?
The front photograph establishes the frame and louvre layout only. Request confirmation of the complete supplied configuration and any rear-mounted components.
Can appearance confirm operation?
No. A still image does not demonstrate louvre movement, electrical compatibility or an operating test result.
