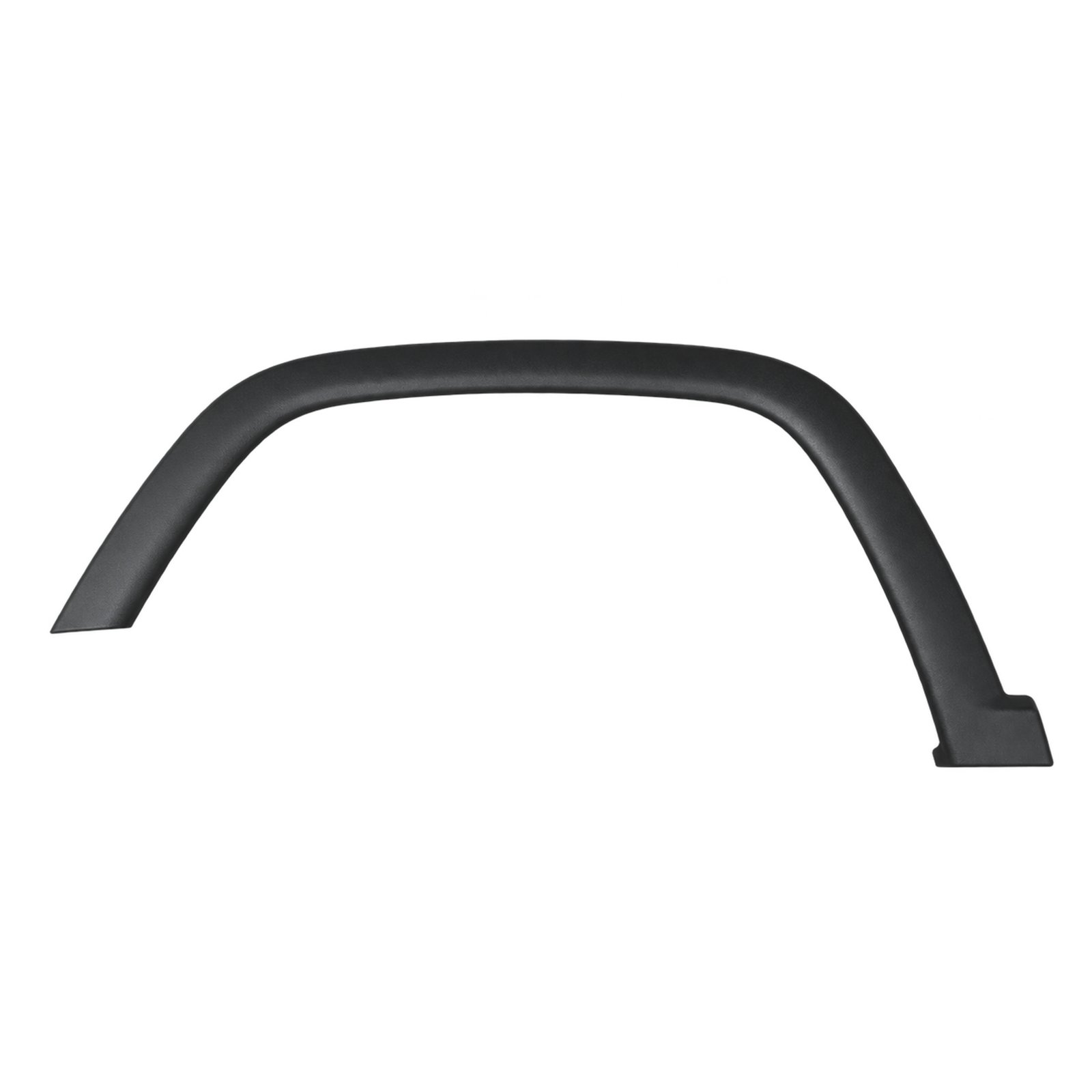

Front Wheel Arch Trim for Jeep Compass 2017-2019
- The arch has a broad top curve and descending outer ends.
- One end finishes in a small stepped foot.
- Compare the full front-arch outline and the correct side before ordering.
Description
Broad Arch with a Stepped End Foot
The front wheel-arch trim curves broadly across the top and narrows down its sides. One end terminates in a small stepped foot rather than a simple angled cut. The face follows a continuous rounded profile along the arch.
Check both ends where the trim meets the adjoining body and bumper pieces. The stepped foot and the opposite end must match the original front arch on the required side. Rear-arch trim and the inner fender liner are different components.
Application and Reference
Application: Jeep Compass 2017-2019. OE reference: 5UP11RXFAB LH / 5UP10RXFAB RH.
Are rear attachment clips included?
A clip set is not confirmed. Compare the original attachment arrangement and request any separate clips needed for the trim.
