Frame Rail End for Jeep Cherokee 2016
- Rectangular box-shaped ends project from broad mounting plates.
- Round fixing holes sit around the plate perimeter.
- The left and right references are separate; the photo does not confirm a pair.
Description

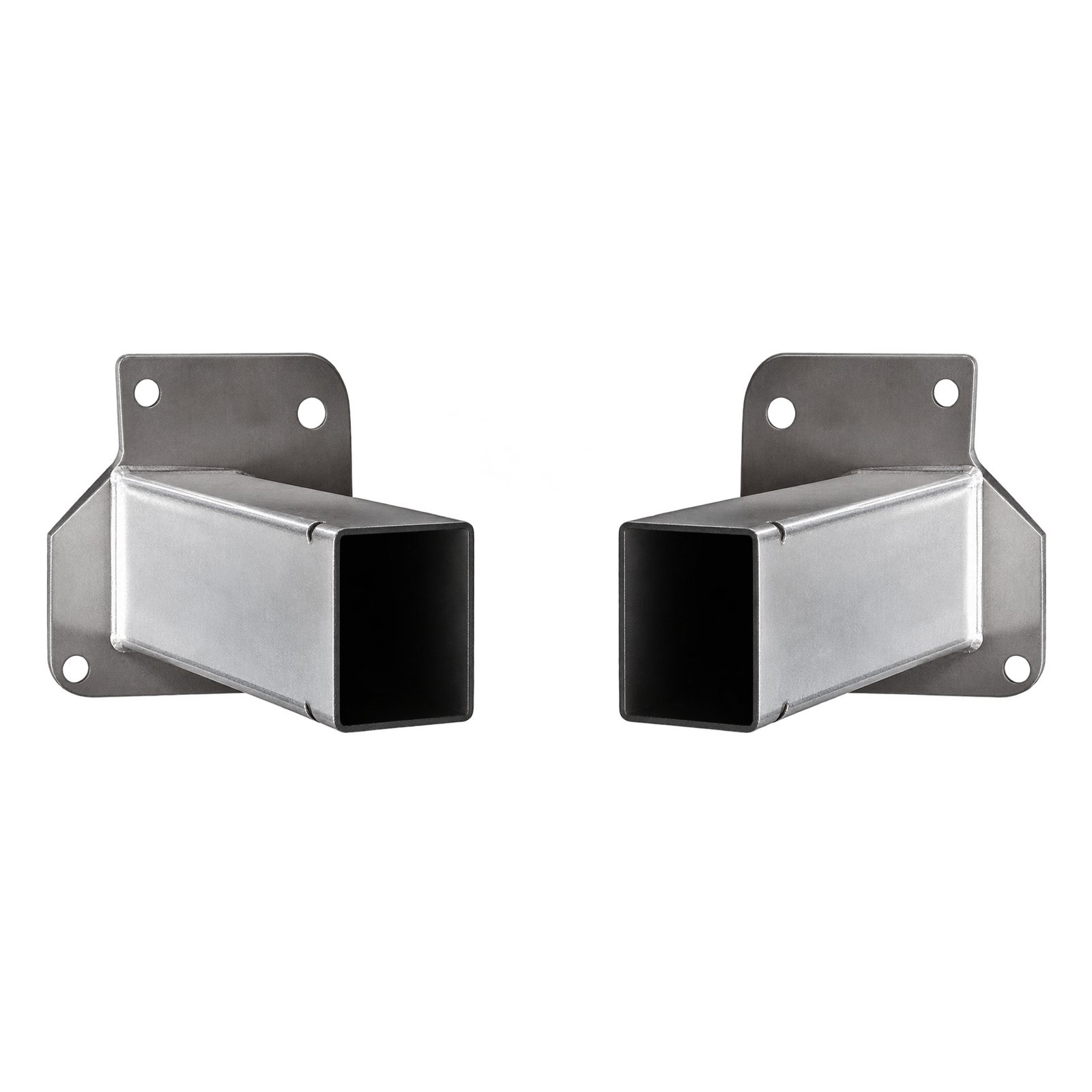

Box-Shaped Ends on Drilled Mounting Plates
Each frame rail end has a rectangular projecting section attached to a wider base plate. The plate extends beyond the box on several sides, leaving its round fixing positions visible. The two pictured orientations help show the projection and plate outline.
Compare the base-plate contour, hole spacing and direction of the projecting section on the required side. Measurements should come from the original component; perspective in the photograph is not a reliable scale for a structural mounting part.
Application and Reference
Application: Jeep Cherokee 2016. OE reference: 68096087AB LH / 68096086AB RH.
Can the required side be identified from the photo alone?
No. Use the left or right reference and the vehicle position together. Confirm the individual component and any fasteners included in the quotation.
