Front Subframe for Jeep Cherokee KL 2016
- The crosspiece has a deep curved lower opening and two prominent circular mounting areas.
- Upright arms and outward-projecting ends make the mounting layout visible for comparison.
- Supply an underside photograph of the original subframe to confirm the required configuration.

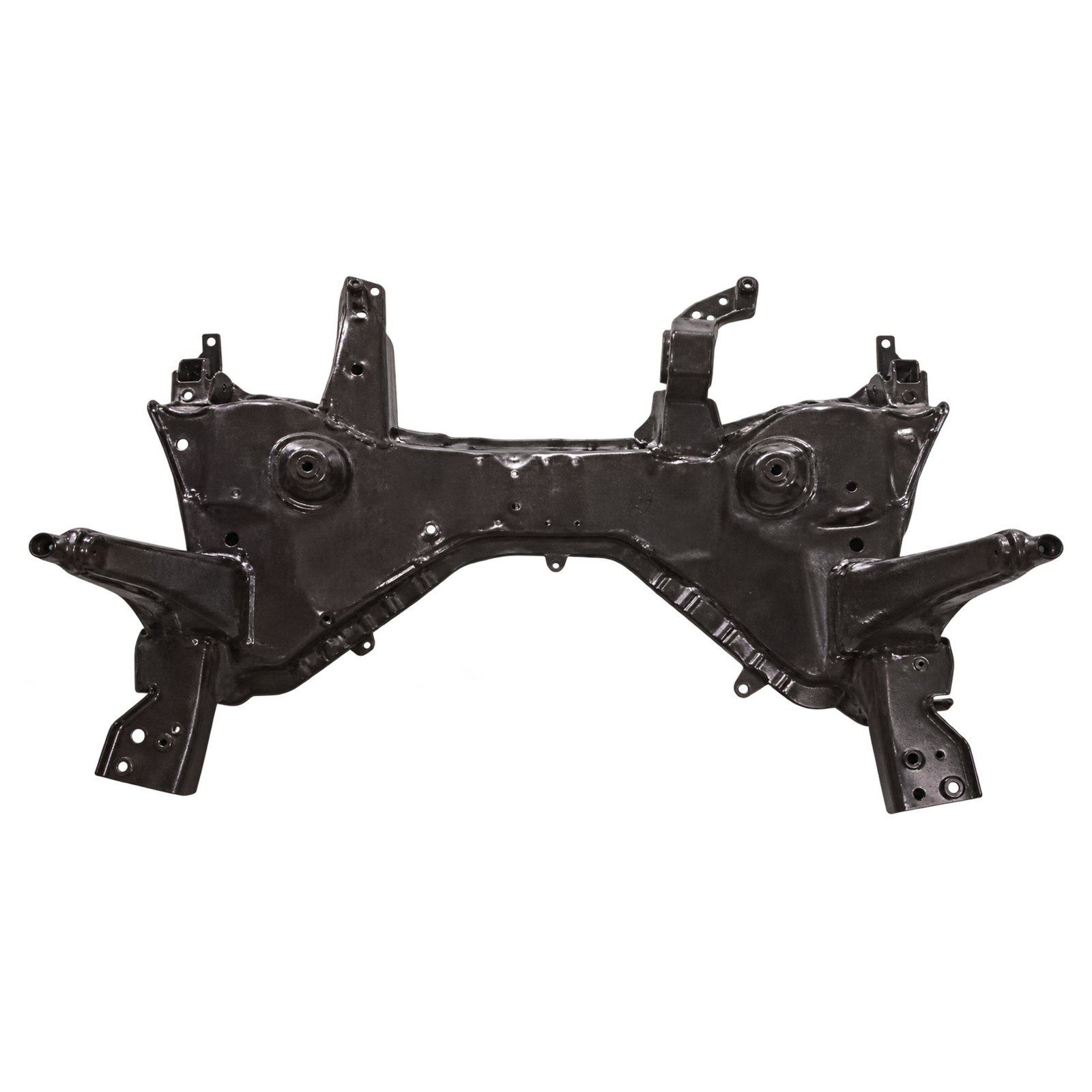

Subframe Shape and Mounting Layout
A broad central crosspiece forms the main outline of this front subframe. Two tall arms rise above it, while the lower edge curves around a large open area. Circular mounting regions and several smaller holes are visible across the face and end brackets.
For a 2016 Jeep Cherokee KL enquiry, compare these positions against the removed frame rather than judging by overall width alone. Engine and drivetrain coverage are not established here; provide those vehicle details and the original component marking before supply is confirmed.
Reference and Supply Checks
OE reference: Available on Request. A complete readable original number will help identify the required configuration.
Are bushes, bolts or other fittings included?
The photograph does not establish a hardware or bushing package. Specify the components needed so they can be confirmed in the quotation.
Does this establish dimensional or structural equivalence?
No measurements or load ratings are stated. Mounting geometry and the exact replacement specification must be verified before installation.
