22783388 Radiator Support – Chevrolet Equinox / GMC Terrain 2010-2017
- Radiator Support — Chevrolet Equinox / GMC Terrain 2010-2017

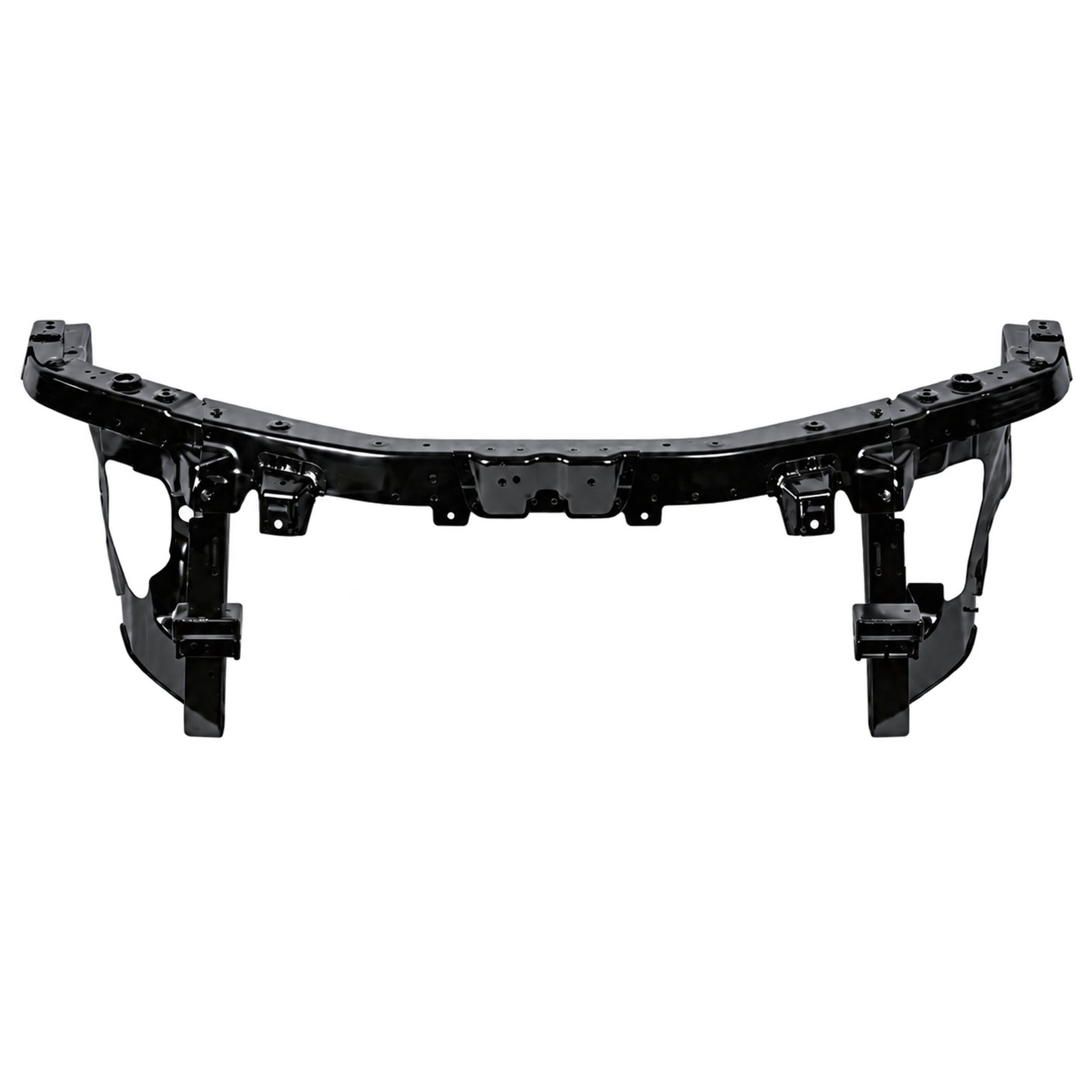

- A shallow curved upper rail with two descending supports and projecting mounts
- Check the central notched plate and the height of the lower mounting shelves
- OE reference: 22783388
Description
Radiator Support Details
A gently bowed cross-rail connects the two vertical sections. The centre carries a notched plate, while each side has an open cut-out and a forward-projecting mounting shelf.
Vehicle and Part Matching
Chevrolet Equinox / GMC Terrain 2010-2017. Use the original support to compare the rail curvature and the spacing between the projecting shelves. Photograph the end plates as well as the central attachment area.
OE reference: 22783388. Confirm the number on the original component.
Product Questions
Is this a closed rectangular frame?
No lower connecting rail is visible in this product image. Match the open-bottom arrangement to the component being replaced.
What should accompany a fitment enquiry?
Send the vehicle year, the existing OE number and photographs of the two side supports, particularly their lower fixing points.
