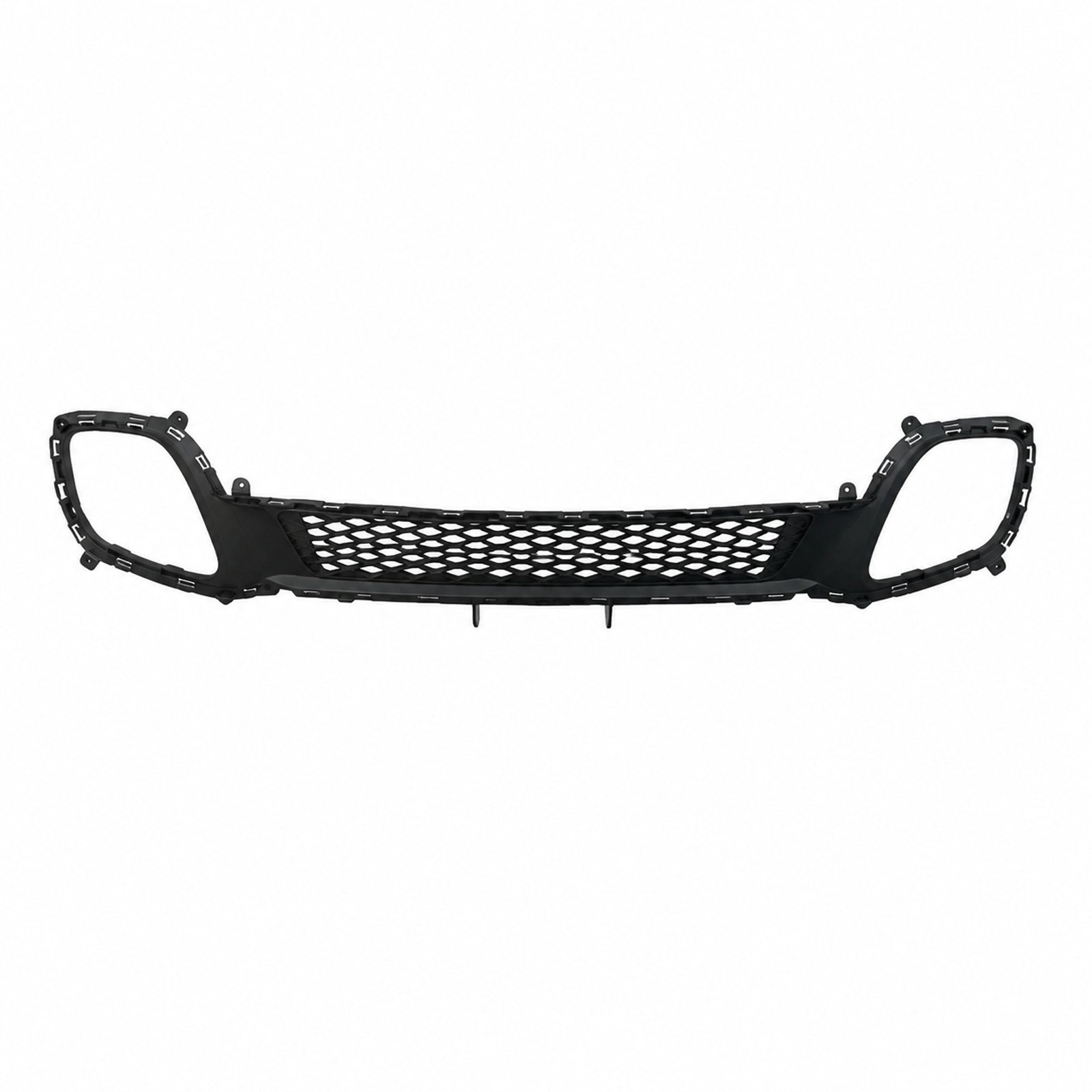

86569-1Y301 Bumper Grille for KIA Picanto ’11 / Picanto ’14
- KIA bumper grille listed for KIA Picanto ’11 / Picanto ’14
- Searchable OE reference: 86569-1Y301
- Configuration checks: upper edge alignment below the lamps, overall corner curvature and bracket and bolt-hole spacing
- Vehicle opening check: lamp or grille openings and side-retainer engagement
- Check mounting direction without relying on a mirrored image
- Retain the original item until the replacement version is accepted
- Obtain current packing details before shipment planning
- Price and lead-time check: specify pieces and destination
- Use adjacent-panel image together with chassis-plate image for configuration review
The product shown is a bumper grille associated with KIA Picanto ’11 / Picanto ’14. Its visible construction, installation interface and recorded identifiers should be reviewed together before it is added to a purchase order.
KIA Product Data
| Component | Bumper Grille |
|---|---|
| OEM replacement reference | 86569-1Y301 |
| Vehicle designation | KIA Picanto ’11 / Picanto ’14 |
| Inspection family | Bumper |
| Version checkpoint | upper edge alignment below the lamps |
| Vehicle-side checkpoint | lamp or grille openings |
| Supply format | B2B replacement-parts enquiry |
Application Scope
The searchable OE identifier 86569-1Y301 should be compared with the marking on the removed part. A number match is strongest when the attachment layout and overall outline also agree.
Quote the application as KIA Picanto ’11 / Picanto ’14 and include a photograph of the original installation position.
Component Recognition Points
Build the comparison around upper edge alignment below the lamps, overall corner curvature and bracket and bolt-hole spacing. Photograph each feature square to the camera, then add one wider view that shows how the component sits beside neighbouring panels or assemblies.
- Upper edge alignment below the lamps
- Overall corner curvature
- Bracket and bolt-hole spacing
Non-Destructive Positioning Check
Installation planning should start with clean mounting surfaces and serviceable retainers. Position the product without paint, sealant or irreversible alteration, then verify that all attachment points reach their intended locations naturally.
Use the removed bumper grille to validate side-retainer engagement and overall corner curvature.
B2B Enquiry Preparation
For a trade quotation, state the product name, KIA designation, required quantity, installation side or position, and delivery country. Attach the comparison images so availability is checked against this configuration rather than a broad vehicle description.
No packing value is published here; request current carton dimensions and pieces per carton with the quotation.
Frequently Asked Questions
Which KIA application is shown for this product?
The page links this item with KIA Picanto ’11 / Picanto ’14. Original-part photographs remain important for confirmation.
What evidence should be checked before ordering?
Vehicle-side evidence should cover bracket and bolt-hole spacing, side-retainer engagement and upper edge alignment below the lamps.
What should be included in a wholesale enquiry?
Send the model label, installation side, purchase volume and receiving location.
