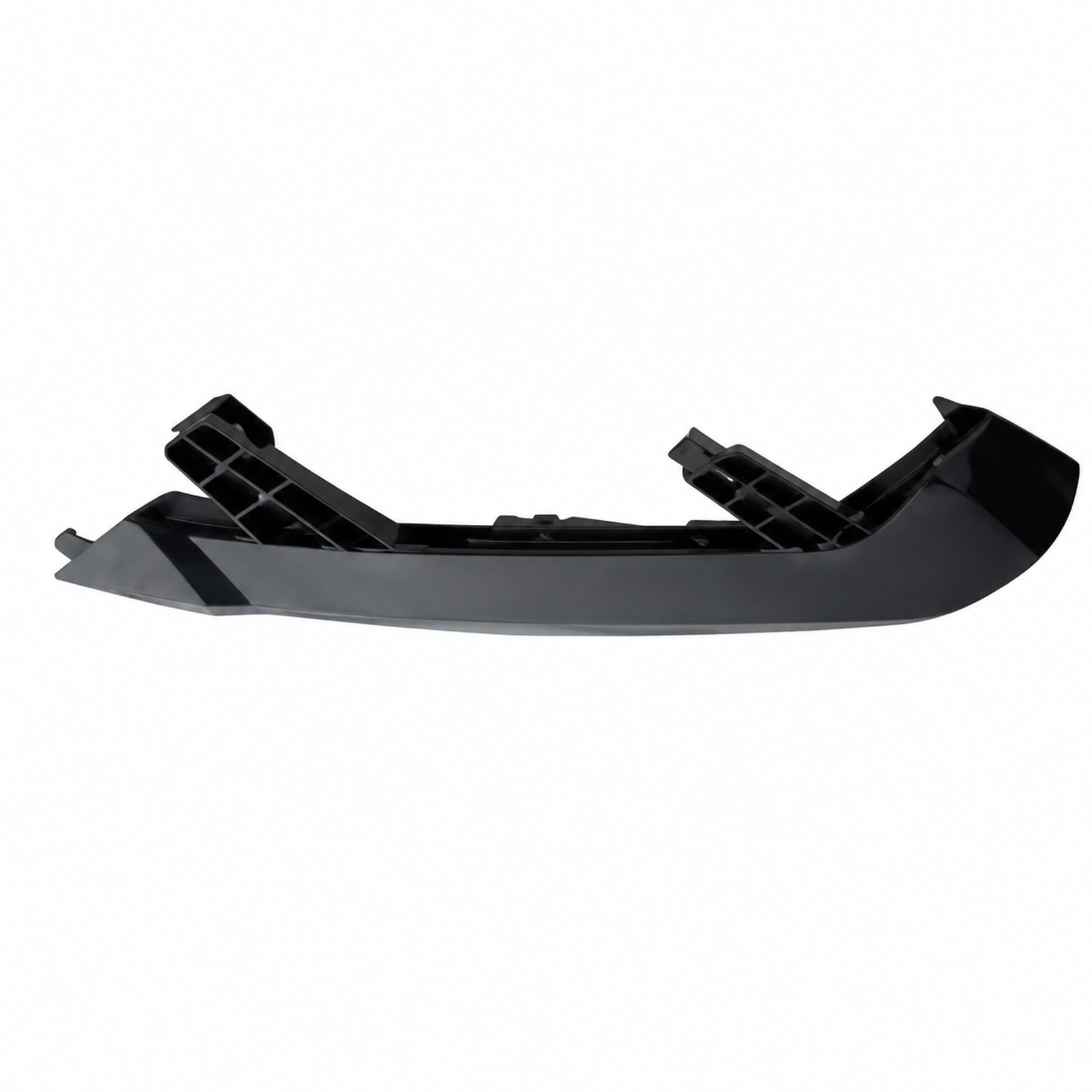

86517-1Y000 / 86518-1Y000 Front Bumper Bracket for KIA Picanto ’11
- Front Bumper Bracket matched to the KIA designation KIA Picanto ’11
- OE cross-reference: 86517-1Y000 / 86518-1Y000
- Primary fitment checks: upper edge alignment below the lamps, overall corner curvature and bracket and bolt-hole spacing
- Mounting-area evidence: lamp or grille openings and side-retainer engagement
- Include the exact installation position with the vehicle details
- Retain the original item until the replacement version is accepted
- Obtain current packing details before shipment planning
- Commercial request: identify volume and delivery location
- Identification photos should contain rear mounting view and side-profile photograph
Shown here is a front bumper bracket for the KIA designation KIA Picanto ’11. The page separates confirmed product data from the checks that still need to be completed on the vehicle.
KIA Product Data
| Component | Front Bumper Bracket |
|---|---|
| OEM replacement references | 86517-1Y000 / 86518-1Y000 |
| Vehicle designation | KIA Picanto ’11 |
| Inspection family | Bumper |
| Version checkpoint | upper edge alignment below the lamps |
| Vehicle-side checkpoint | lamp or grille openings |
| Supply format | B2B replacement-parts enquiry |
KIA Application Record
The OE references are 86517-1Y000 / 86518-1Y000. Search and quotation records should retain every number in the same sequence so the requested variant remains traceable.
Use KIA Picanto ’11 as the catalogue application, then verify the removed component before ordering.
Configuration Evidence
Use the removed component to compare lamp or grille openings, followed by upper edge alignment below the lamps. Finish the record with a vehicle-side photograph of overall corner curvature so orientation is clear.
- Upper edge alignment below the lamps
- Overall corner curvature
- Bracket and bolt-hole spacing
Pre-Installation Procedure
Installation planning should start with clean mounting surfaces and serviceable retainers. Position the product without paint, sealant or irreversible alteration, then verify that all attachment points reach their intended locations naturally.
Final fastening should wait until side-retainer engagement and overall corner curvature are confirmed.
Buyer Submission Details
To prepare supply terms, provide the model designation, quantity, receiving location and a photo of the original marking. Confirm current availability and export packing before scheduling the repair.
No packing value is published here; request current carton dimensions and pieces per carton with the quotation.
Frequently Asked Questions
Which KIA vehicle label belongs with this item?
KIA Picanto ’11 is the associated KIA designation, supported by a vehicle-side fitment check.
What is the safest way to confirm this configuration?
Confirm the configuration by examining side-retainer engagement, upper edge alignment below the lamps and bracket and bolt-hole spacing.
How should an availability request be prepared?
Request current packing and lead time with the order volume and destination.
