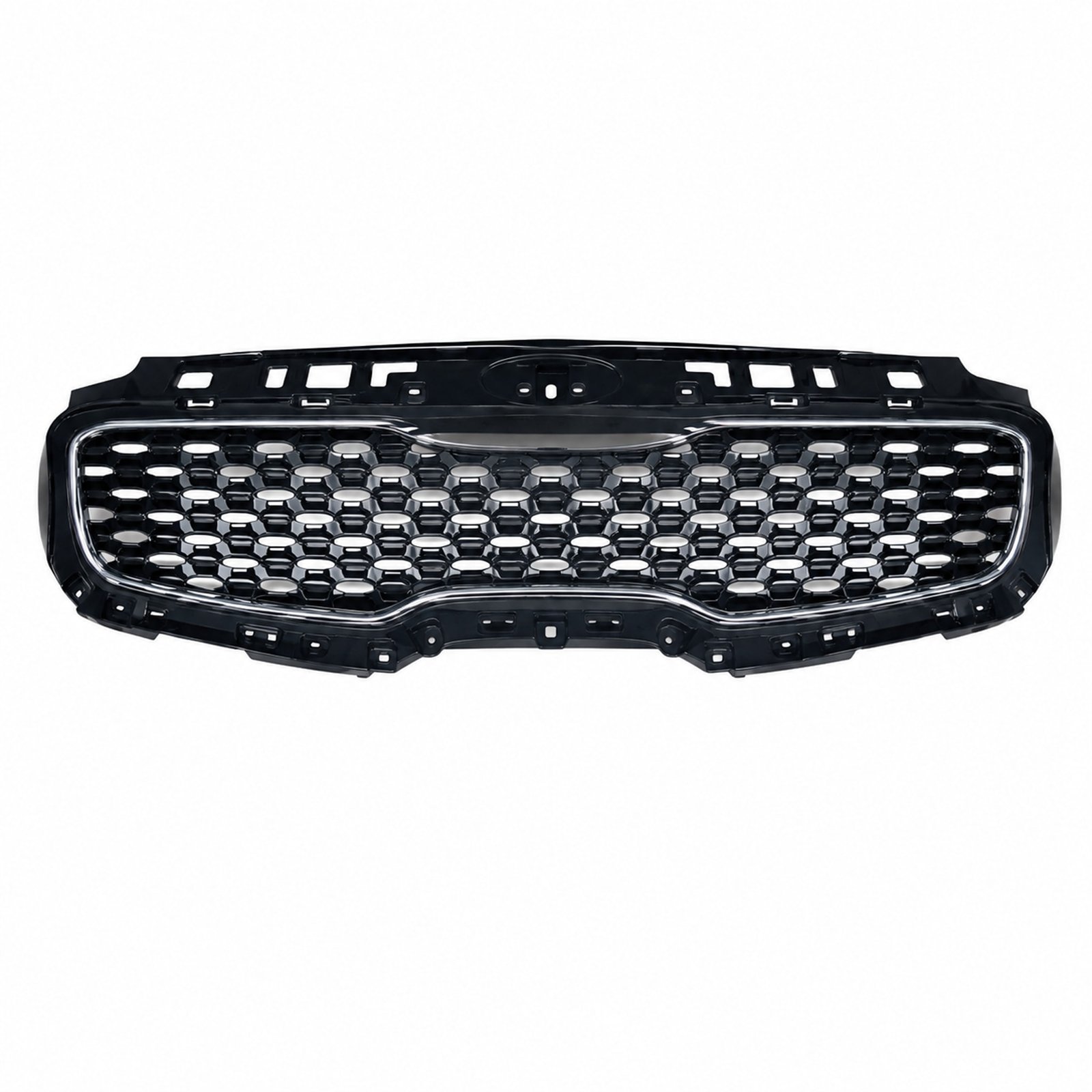

86350-D9010 Grille for KIA Sportage ’15 / Kx5
- Vehicle designation for this grille: KIA Sportage ’15 / Kx5
- OE lookup term: 86350-D9010
- Required inspection items: lower clip arrangement, mesh or slat pattern and clearance beside the lamps
- Position verification: outer perimeter shape and upper tab positions
- Check front/rear and left/right location where applicable
- Match the complete outline and attachment face before approving fitment
- Packing notation: 112 × 57 × 41CM / 10PCS
- Wholesale quotation requires quantity plus destination
- Submit removed-part overview together with full component outline for checking
This entry describes a replacement grille for the KIA model label KIA Sportage ’15 / Kx5. Identification should combine the written reference, where present, with photographs and vehicle-side measurements.
KIA Product Data
| Component | Grille |
|---|---|
| OEM replacement reference | 86350-D9010 |
| Vehicle designation | KIA Sportage ’15 / Kx5 |
| Inspection family | Grille |
| Version checkpoint | lower clip arrangement |
| Vehicle-side checkpoint | outer perimeter shape |
| Packing information | 112 × 57 × 41CM / 10PCS |
| Supply format | B2B replacement-parts enquiry |
Application Scope
Recorded OE data: 86350-D9010. Include this reference in the enquiry and attach an image of any original label that remains readable.
Use KIA Sportage ’15 / Kx5 as the catalogue application, then verify the removed component before ordering.
Image and Measurement Review
The recognition sequence for this item is clearance beside the lamps, mesh or slat pattern and upper tab positions. Keep the camera angle consistent with the product image so shape differences are easy to see.
- Lower clip arrangement
- Mesh or slat pattern
- Clearance beside the lamps
Mounting and Clearance Review
Keep protective packaging on exposed faces during the first positioning step. Once the mounting pattern, orientation and operational clearance are verified, follow the vehicle repair procedure for final installation.
A loose positioning check should confirm mesh or slat pattern without conflict at upper tab positions.
Buyer Submission Details
The purchasing record should preserve the selected product URL, vehicle application and image evidence. Add quantity and destination so the supplier can return configuration, packing and delivery information in one response.
The recorded packing reference is 112 × 57 × 41CM / 10PCS; ask for confirmation when the shipment quantity and destination are known.
Frequently Asked Questions
What vehicle designation is linked to this component?
It is listed for KIA Sportage ’15 / Kx5; confirm the actual vehicle position before purchase.
What evidence should be checked before ordering?
The main checkpoints are upper tab positions, lower clip arrangement and clearance beside the lamps.
What should a distributor send with the order request?
Request current packing and lead time with the order volume and destination.
