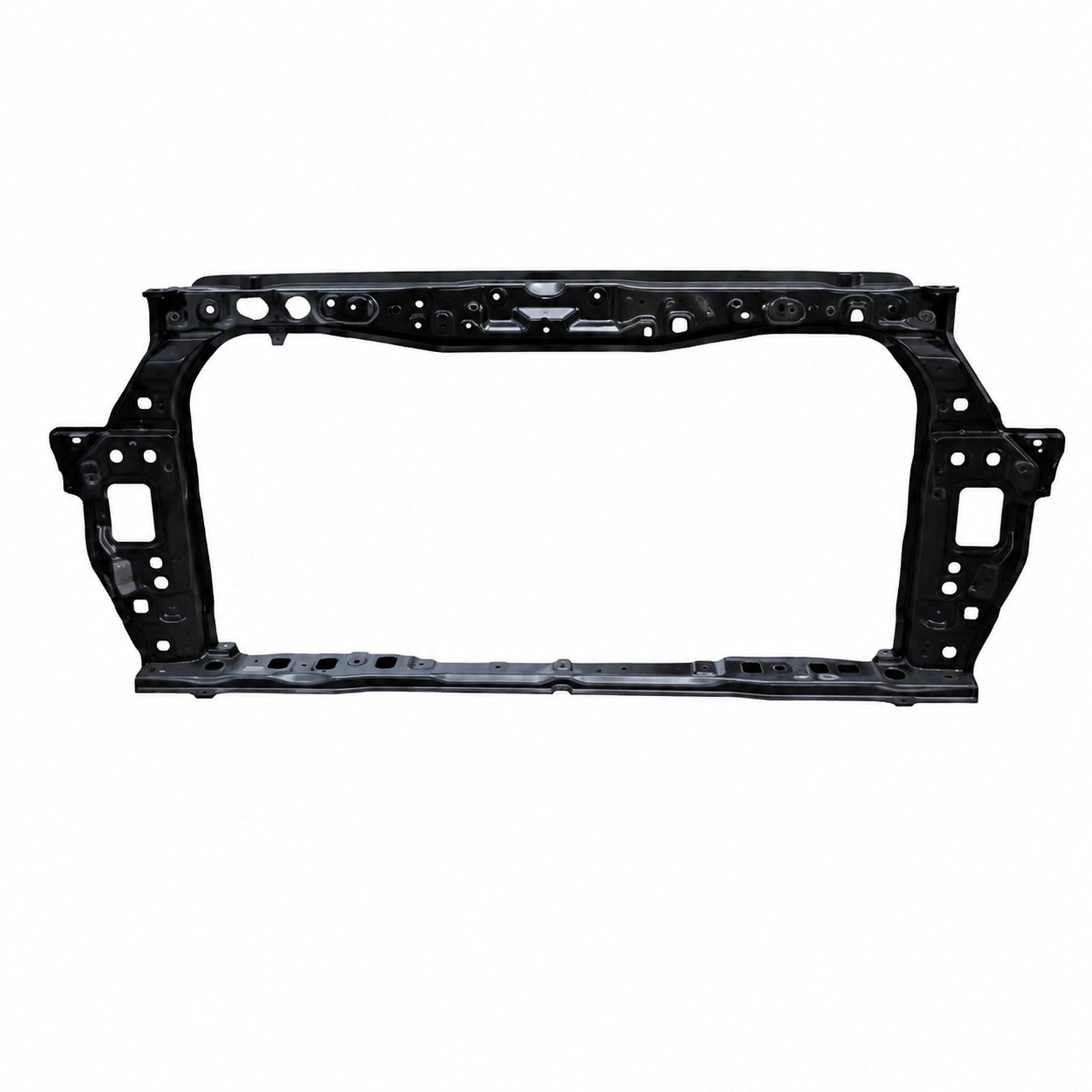

86350-1W010 for KIA Rio ’10 / Rio ’11 Sedan
- KIA listed for KIA Rio ’10 / Rio ’11 Sedan
- Searchable OE reference: 86350-1W010
- Primary fitment checks: connector details when applicable, installation orientation and original-part markings
- Attachment review: overall dimensions and mounting pattern
- Confirm the required left, right, front or rear installation position
- Use the vehicle component as the final physical comparison sample
- Packing data: 92 × 43 × 46CM / 10PCS
- Trade pricing request: state order size and shipping market
- For remote review, send original-label photograph and fixing-point close-up
This is catalogued under KIA Rio ’10 / Rio ’11 Sedan. Buyers can use the page to assemble a verification record covering the image, physical attachment details and any available OE reference.
KIA Product Data
| Component | |
|---|---|
| OEM replacement reference | 86350-1W010 |
| Vehicle designation | KIA Rio ’10 / Rio ’11 Sedan |
| Inspection family | General |
| Version checkpoint | connector details when applicable |
| Vehicle-side checkpoint | overall dimensions |
| Packing information | 92 × 43 × 46CM / 10PCS |
| Supply format | B2B replacement-parts enquiry |
Vehicle Designation and Position
The searchable OE identifier 86350-1W010 should be compared with the marking on the removed part. A number match is strongest when the attachment layout and overall outline also agree.
This component is grouped under KIA Rio ’10 / Rio ’11 Sedan. Confirm orientation and the vehicle-side configuration.
Component Recognition Points
Use the removed component to compare overall dimensions, followed by connector details when applicable. Finish the record with a vehicle-side photograph of installation orientation so orientation is clear.
- Connector details when applicable
- Installation orientation
- Original-part markings
Mounting and Clearance Review
Keep protective packaging on exposed faces during the first positioning step. Once the mounting pattern, orientation and operational clearance are verified, follow the vehicle repair procedure for final installation.
Installation can proceed after the technician accepts mounting pattern plus installation orientation.
B2B Enquiry Preparation
Send one line item per required component, adding the installation position and order volume. Vehicle-side evidence should accompany the request whenever the OE field is blank or more than one visual version exists.
The recorded packing reference is 92 × 43 × 46CM / 10PCS; ask for confirmation when the shipment quantity and destination are known.
Frequently Asked Questions
Which KIA application is shown for this product?
This is catalogued for KIA Rio ’10 / Rio ’11 Sedan; check the vehicle configuration as well.
Which physical details should a workshop compare?
Compare connector details when applicable, original-part markings and mounting pattern with the removed part.
Which details are needed for a B2B quotation?
Identify the product version, shipment quantity and receiving market.
